Know Where to Digโand How Deep to Plan.
Professional 512Hz sewer camera locator with depth measurement,designed to help plumbers and contractors locate underground transmitters and check their approximate depth for more targeted excavation and repair.
Depth Measurement for Your Sewer Camera Setup
Pair the S88R with a sewer camera equipped with a compatible 512Hz transmitter to connect what you see inside the pipe with its location above ground.
Find the camera head, check its approximate depth, and plan more targeted excavationโgetting more from your existing inspection equipment.
*Requires a compatible active 512Hz transmitter. Sewer camera sold separately.

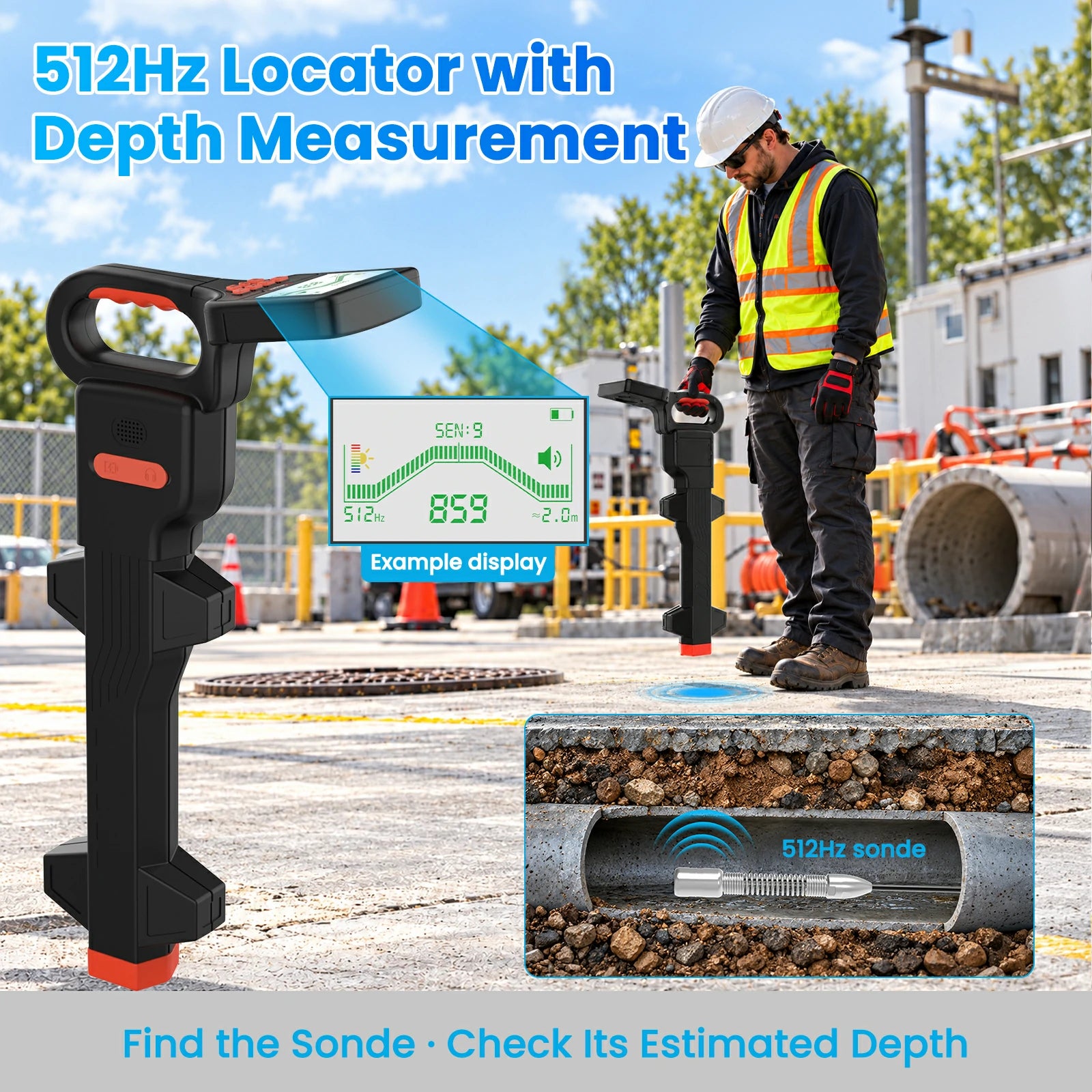

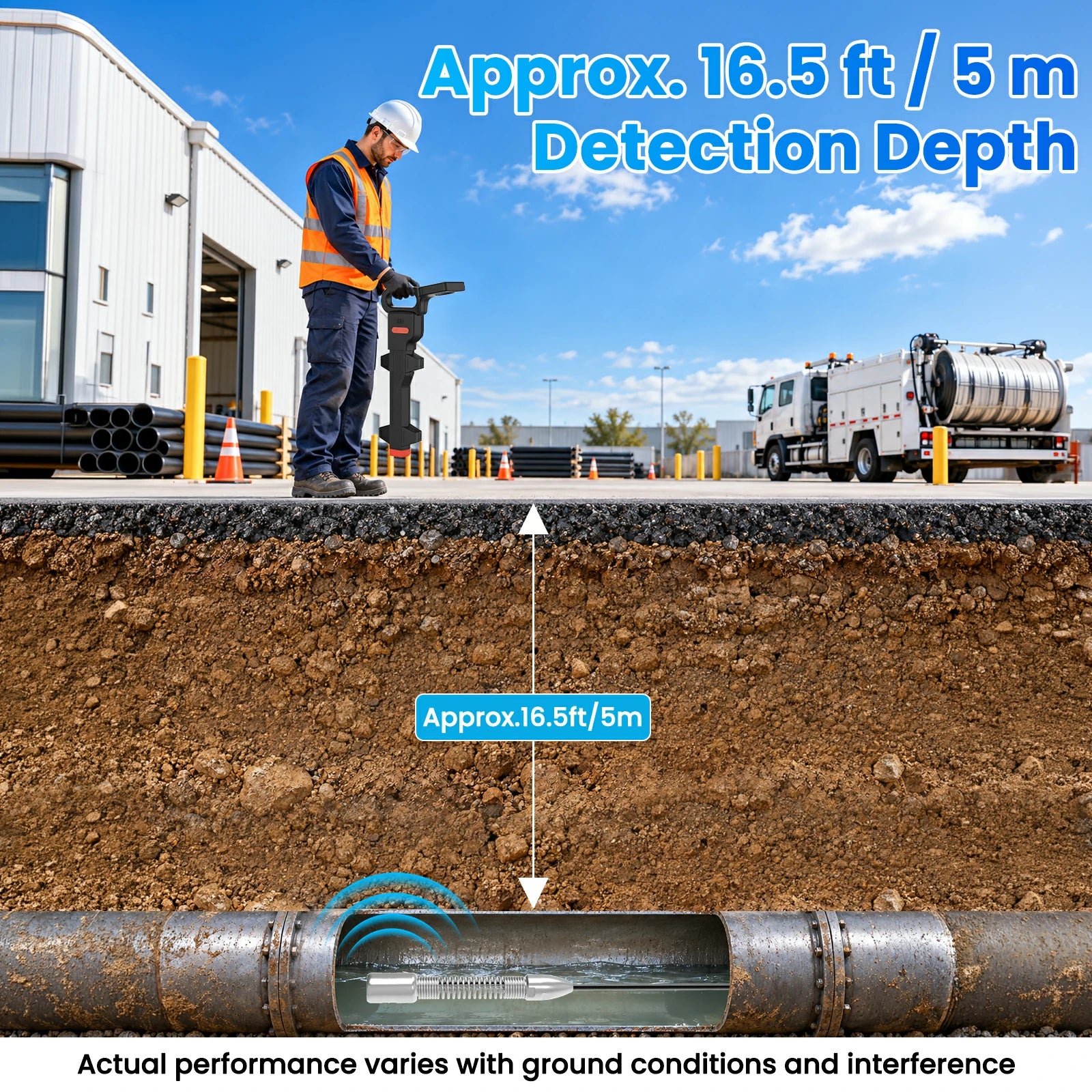

512Hz Locating with Approx. 5 m / 16.5 ft Detection Depth
Reach deeper with a detection range of up to 5 m / 16.5 ftโlocate compatible 512Hz camera transmitters from above ground and narrow down buried pipe problems before you dig.
With 9 adjustable sensitivity levels and visual and audio signal feedback, the S88R helps you narrow the search area from above ground. Pinpoint the target, then check its approximate depth to make repair planning more informed and reduce unnecessary digging.

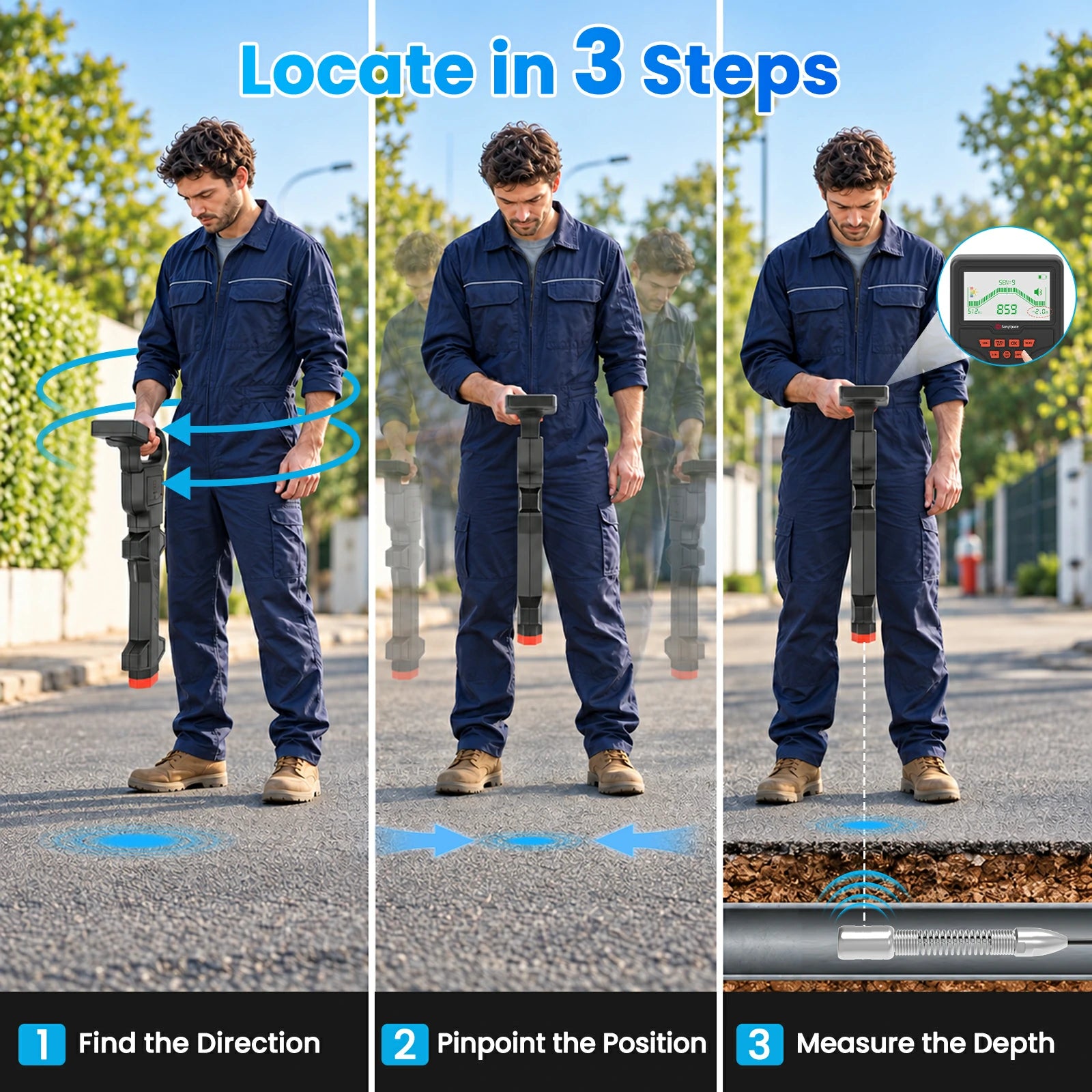

๐ How It Works
Find Your Direction with Clear Signal Feedback.
Narrow down your search with a slow 360ยฐ rotation. The S88Rโs on-screen signal display and audio feedback help you identify the strongest response and establish the approximate direction of the underground transmitter.
Nine adjustable sensitivity levels help keep signal changes distinguishable as you search.
Follow the Signal. Pinpoint the Problem Area.
Narrow a broad search area down to a marked location above the underground transmitter. As you move closer, the S88R's on-screen signal strength and audio feedback help you follow the increasing response.
Gently sweep approximately 30ยฐ to each side: the strongest central signal, with similar readings on both sides, indicates you are near directly above the transmitter. Mark this spot to establish a reference for depth measurement and repair planning.โ
Keep the sensitivity at the same level when comparing readings.
Add Depth to Your Repair Decisions.
Once the target is pinpointed, hold the S88R upright and still, then press the DEPTH button to view the approximate depth of the blockage locationโgiving your repair plan another useful reference.
Confirm a stable reading with 2โ3 measurements at the same point to better understand where the target sits underground.
For more reliable readings, the locator-to-transmitter distance should exceed 0.8 m / 2.6 ft. Site conditions may affect results.
Clear Feedback. Longer Runtime.

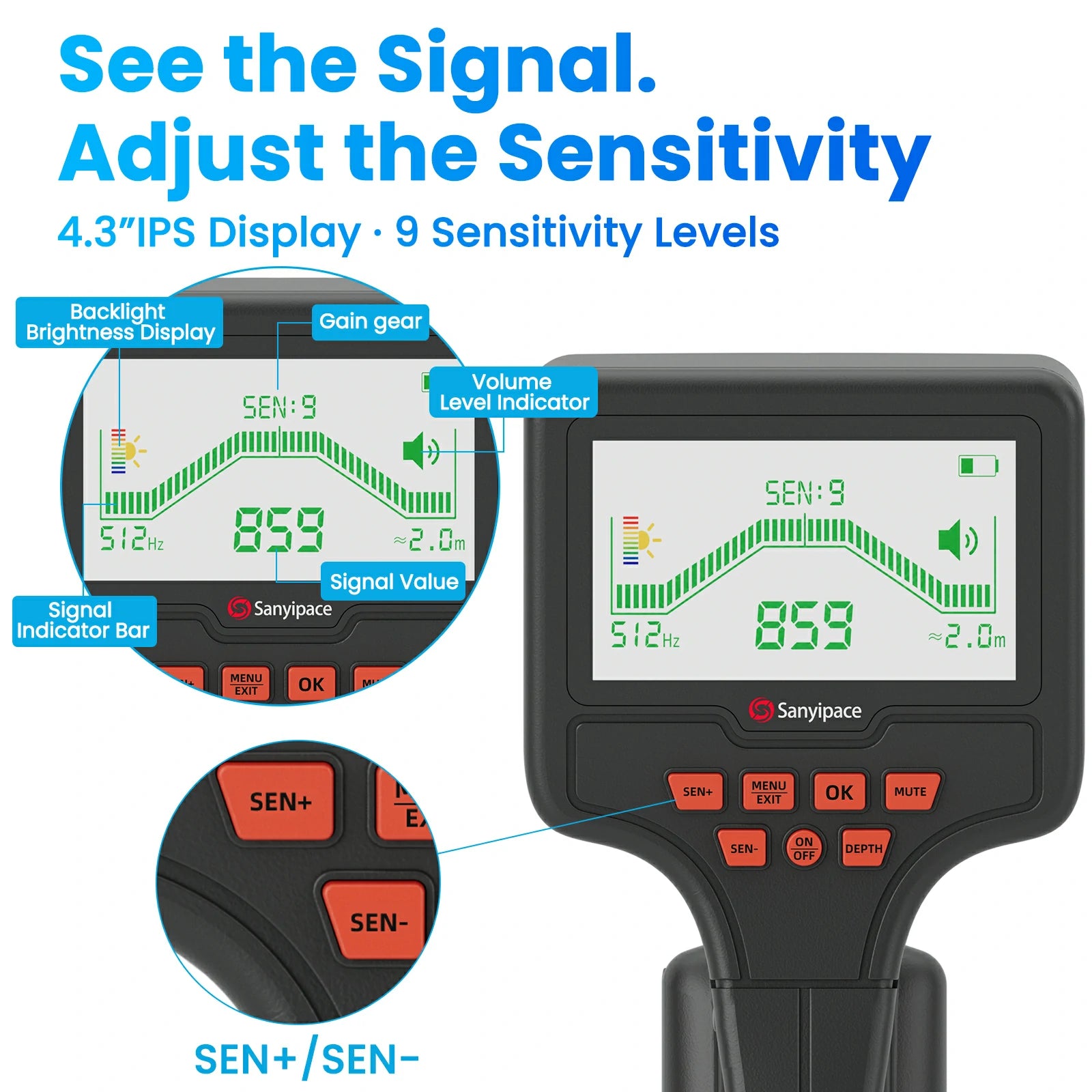

Fine-Tune Your Search :
Adjust sensitivity across 9 levels and use audio feedback to help identify the signal peak. Earphones are included for additional listening support.
Keep Working for 16+ Hours :
A full charge provides at least 16 hours of continuous operation, helping you complete longer locating sessions with fewer charging interruptions.
A Practical Fit for Your Inspection Setup

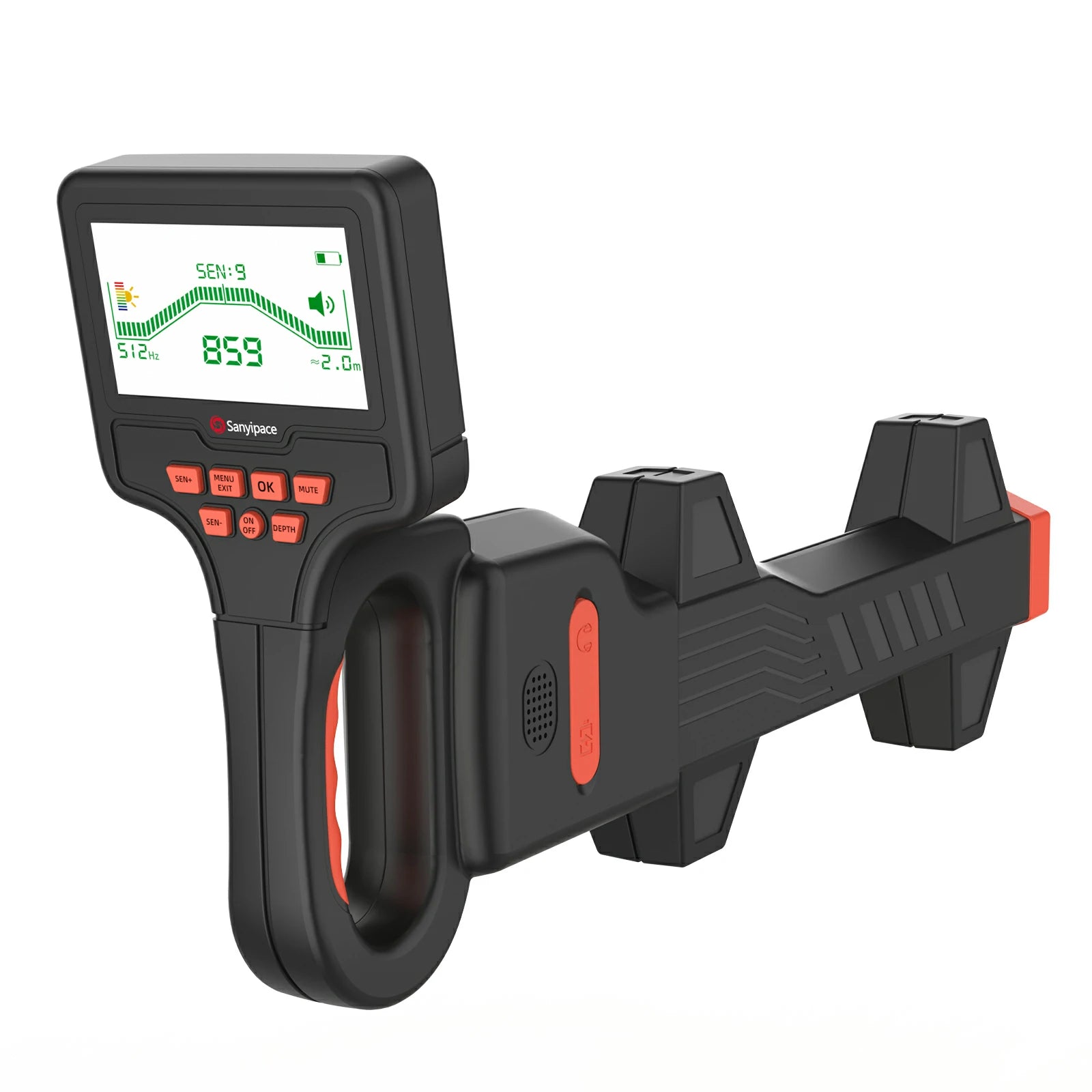

Measuring 60 cm / 23.6 in in overall length, design with a 4.3-inch IPS display,the S88R features an integrated handle for carrying and positioning during field inspections. Check the dimensions shown to plan how it fits alongside your sewer camera and other inspection equipment.

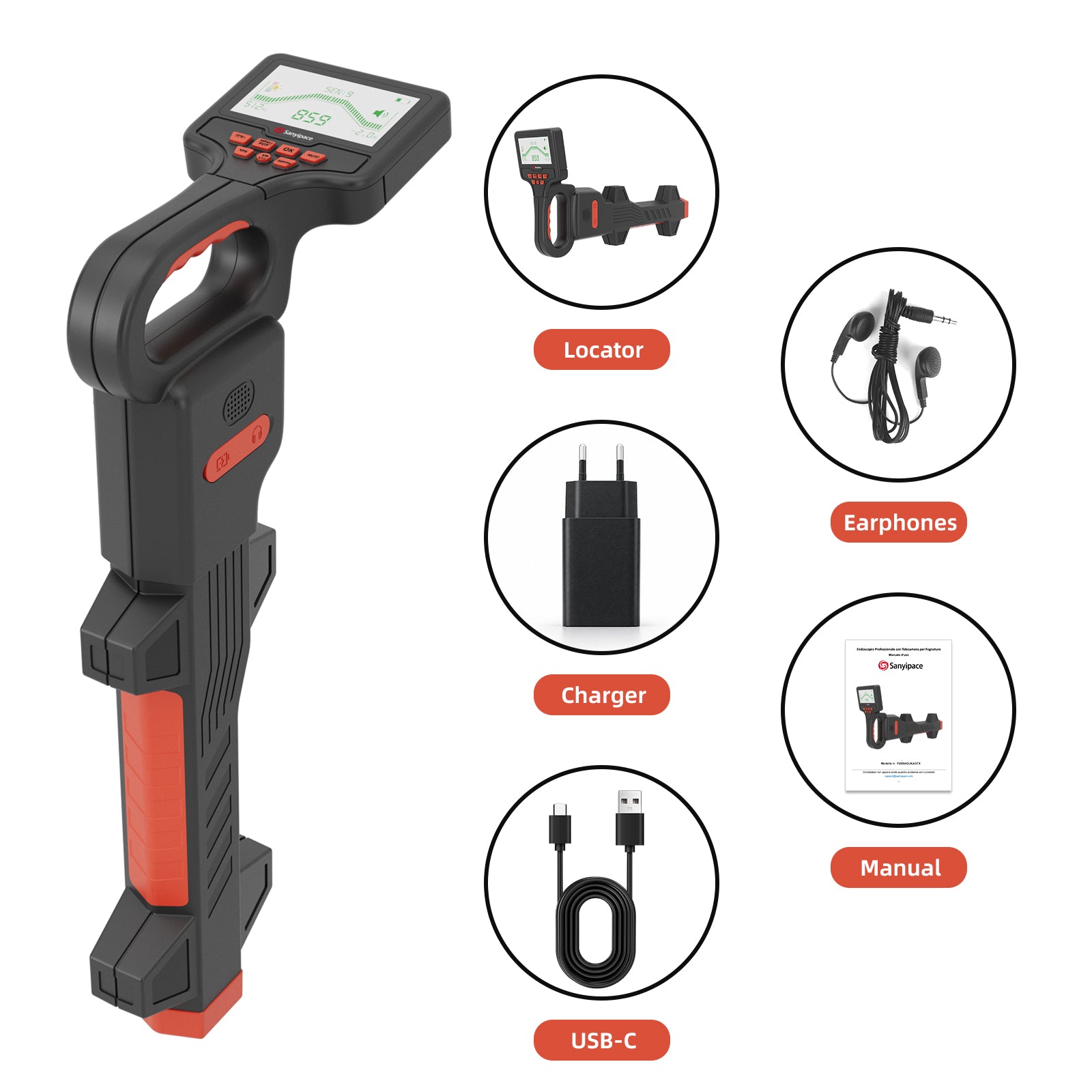

Package List
1 * Locator
1 * Instruction Manual
1 * Earphones
1 * Charger
1 * USB-C Data Cable
