Plumbing Camera Core Functionality Overview
Specification
Details
Screen Size 10 Inch Resolution AHD 1080P Waterproof Level IP68 Camera Angle 145° Camera Light Source 12 pcs LED (Adjustable) Meter Counter ✔ 512Hz Transmitter ✔ 512Hz Locator ✔ (Option) Coil Diameter 0.28 inch Self-Leveling ✔
Autonivelante & Cabezal de cámara para alcantarillado impermeable IP68
La cámara para alcantarillado incluye una cámara FHD 1080P de 23 mm, fabricada con un resorte súper flexible. Cuenta con certificación IP68 de resistencia al agua, un chip mejorado y un lente gran angular de 145° con corrección de distorsión, que ofrece imágenes nítidas de alta definición (1000 TVL) con 12 luces LED blancas y 5 modos de ajuste.
Cabezal de cámara para alcantarillado con sonda transmisora de 512 Hz
El
Equipado con un contador de distancia incorporado

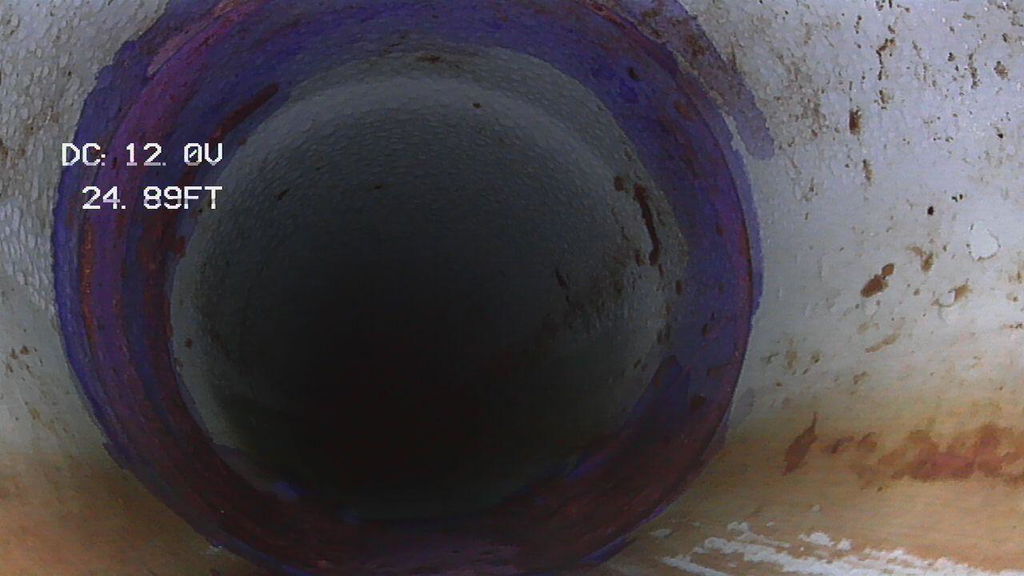

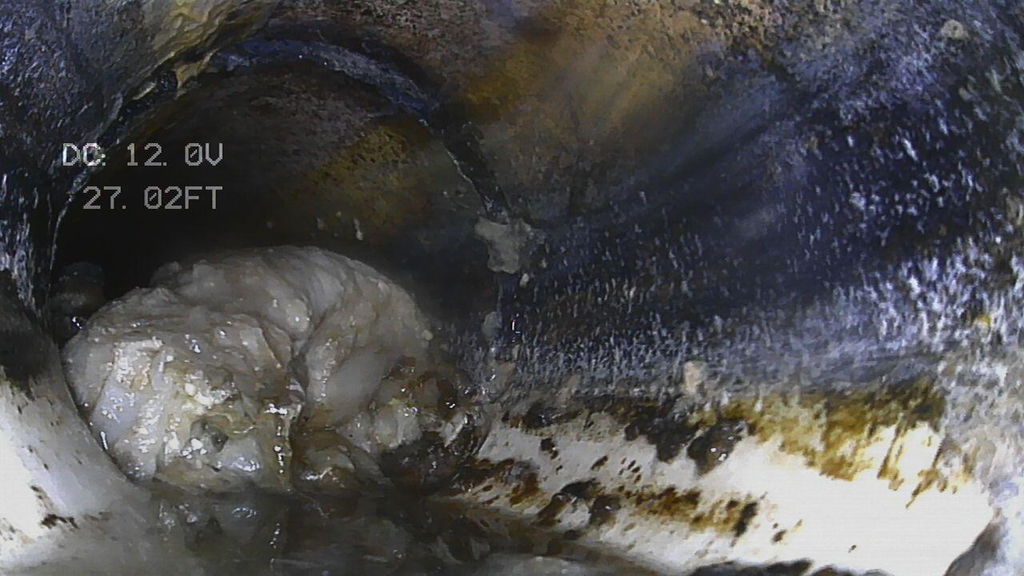

Esta avanzada cámara para alcantarillado incorpora un contador de distancia que registra automáticamente el avance exacto del cabezal de la cámara dentro de la tubería. La distancia se muestra claramente en pies o metros (tecla F4 - interruptor Metros/Pies). & La tecla F7 (Borrar contador) muestra en pantalla datos precisos en tiempo real, proporcionando a fontaneros e inspectores información precisa durante cada inspección. Gracias a esta función, la cámara de drenaje permite localizar con facilidad la ubicación exacta de obstrucciones, grietas o defectos.
Ya sea que se utilice como cámara de plomería para tuberías residenciales o como cámara profesional de inspección de alcantarillado para aplicaciones industriales, el contador de distancia garantiza una resolución de problemas más rápida, reduce las conjeturas y permite una planificación de reparaciones más precisa.
Entra fácilmente en varios tubos de alcantarillado
La cámara para alcantarillado S850DSTKM cuenta con un cabezal de 23 mm (0,9 pulgadas) diseñado para adaptarse a una amplia variedad de tuberías de alcantarillado y fontanería. Con diámetros de bobina de 5 mm (0,20 pulgadas) y 7 mm (0,28 pulgadas), esta cámara profesional para desagües ofrece la máxima adaptabilidad a diferentes situaciones de inspección.
El cabezal de la cámara, con un resorte súper flexible y una carcasa de acero inoxidable resistente, garantiza una entrada sin problemas en tuberías de alcantarillado de más de 3 cm (1,18 pulgadas), lo que la hace ideal para aplicaciones de inspección de fontanería tanto residenciales como comerciales. El cable de empuje de fibra de vidrio de alta resistencia, disponible en 30,5 m (100 pies), 50 m (165 pies) o 80 m (263 pies), ofrece una durabilidad y flexibilidad excepcionales, permitiendo que la cámara de inspección de alcantarillado navegue incluso por las curvas más complicadas y las zonas de difícil acceso. Optimizada para entornos oscuros, húmedos y mojados, esta cámara para desagües garantiza un rendimiento fiable en condiciones de inspección reales.
Cámara de drenaje HD 1080p con audio DVR & Vocero

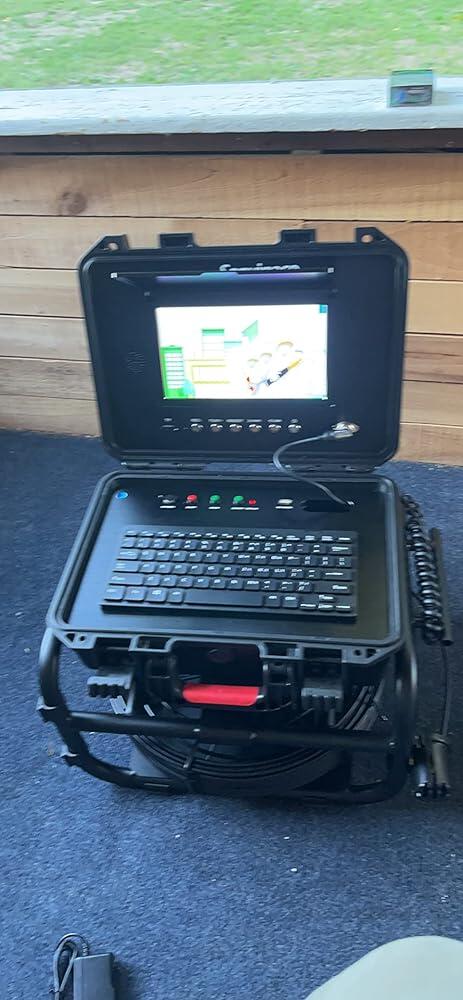

Panel de control & Entrada de teclado
(1) Puerto de carga de alimentación
(2) Interruptor de batería (Nota: apague el interruptor cuando no esté en uso)
(3) Botón de reinicio del contador
(4) Ajuste de brillo del LED (0-5 niveles)
(5) Luz indicadora de encendido (Cárguela si parpadea)
(6) Esc: Borrar caracteres
(7) Tecla F4: Interruptor de medidor/pies
(8) Tecla F5: Interruptor OSD (visualización en pantalla)
(9) Tecla F6: Ajuste del brillo del LED (niveles de 0 a 5)
(10) Tecla F7: Borrar contador
(11) Tecla F9: Ajuste de fábrica
(12) ARRIBA/ABAJO
Armar & Desmontar la caja
&<1&Pasos de montaje:
a. Alinee los 3 orificios de los tornillos de montaje de la caja de control con el soporte y
instálalos.
b. Apriete los 3 tornillos para evitar que se caigan.
&<2&Pasos de desmontaje:
a. Retire los 3 tornillos de la caja de control;
b. Saque la caja de plástico.
Lista de paquetes
1 * Monitor IPS de 10 pulgadas (DVR)
1 * Batería de litio
1 * Puerto de cámara (AHD 1080P con autonivelación)
1 * Tarjeta TF de 32 GB
1 * Serpentín de alcantarillado
1 * Cubierta protectora de 1,5 pulgadas/38 mm
1 * Cargador
1 * Polea de tubo de 3,9 pulgadas/99 mm
1 * Destornillador
1 * Manual del usuario
Customers praised this drain camera for its "crisp and clear" picture quality and excellent value compared to professional models costing thousands more. The self-leveling feature, distance tracker, and 512Hz locator received high marks. Most reported "great customer service" with fast replacement parts. Some concerns included charger reliability and recording functionality issues over time.
Some of the reviews shown are from related products the merchant grouped with this one.
R
Had an issue with my Saniypace camera, and they sent out the replacement part quickly. The fix was simple, and it’s now working great again. Good customer service and fast response. The camera has performed well so far.
T
I got this for the distance and sonde. Camera works well, and it serves perfectly for private locating.
G
The waterproof camera head survived being dropped in a muddy pit with no issues.
E
I decided to buy it because of a friend who has the same one and I don't regret it, it was the best decision, good construction and very easy to understand.
M

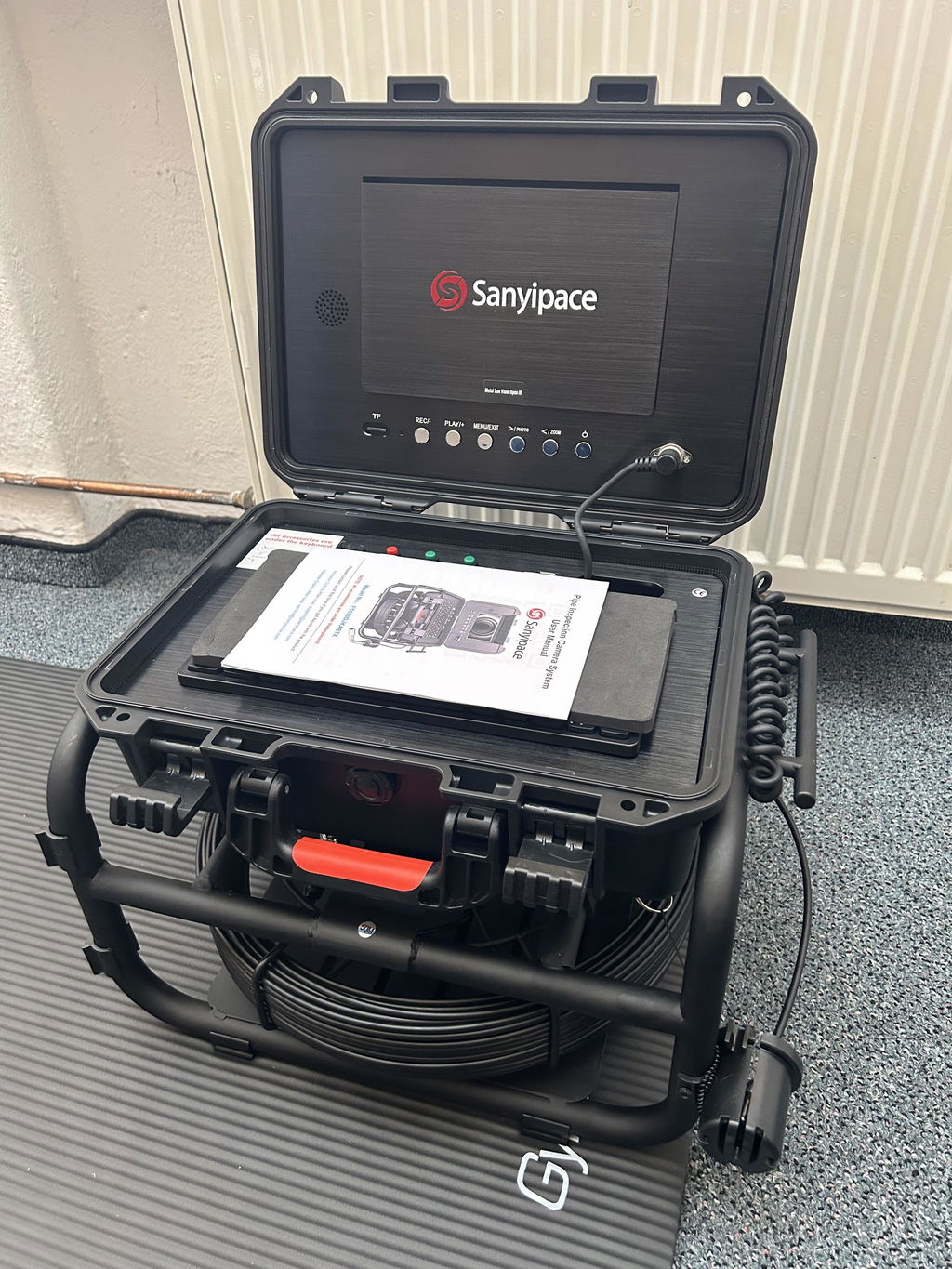

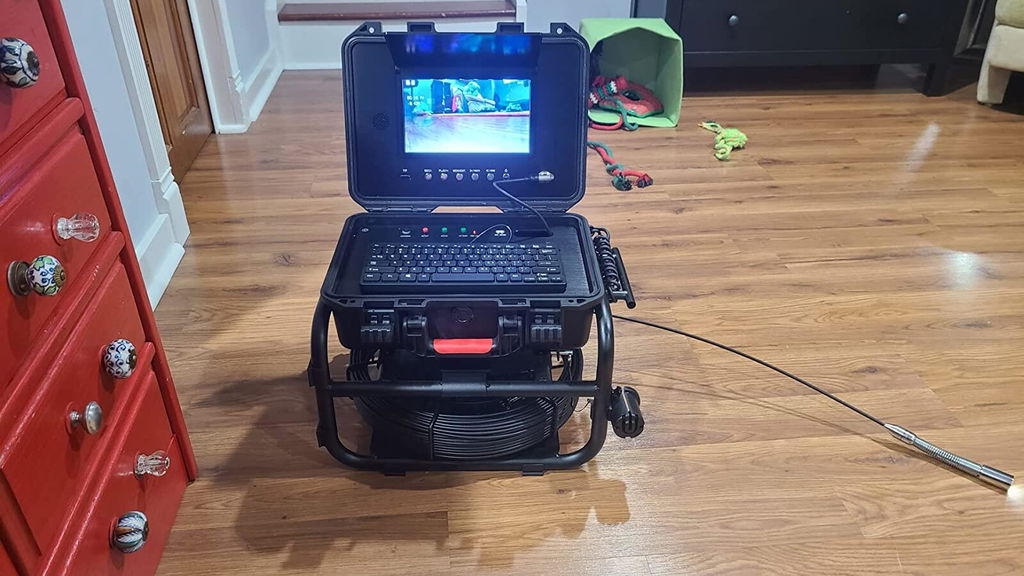

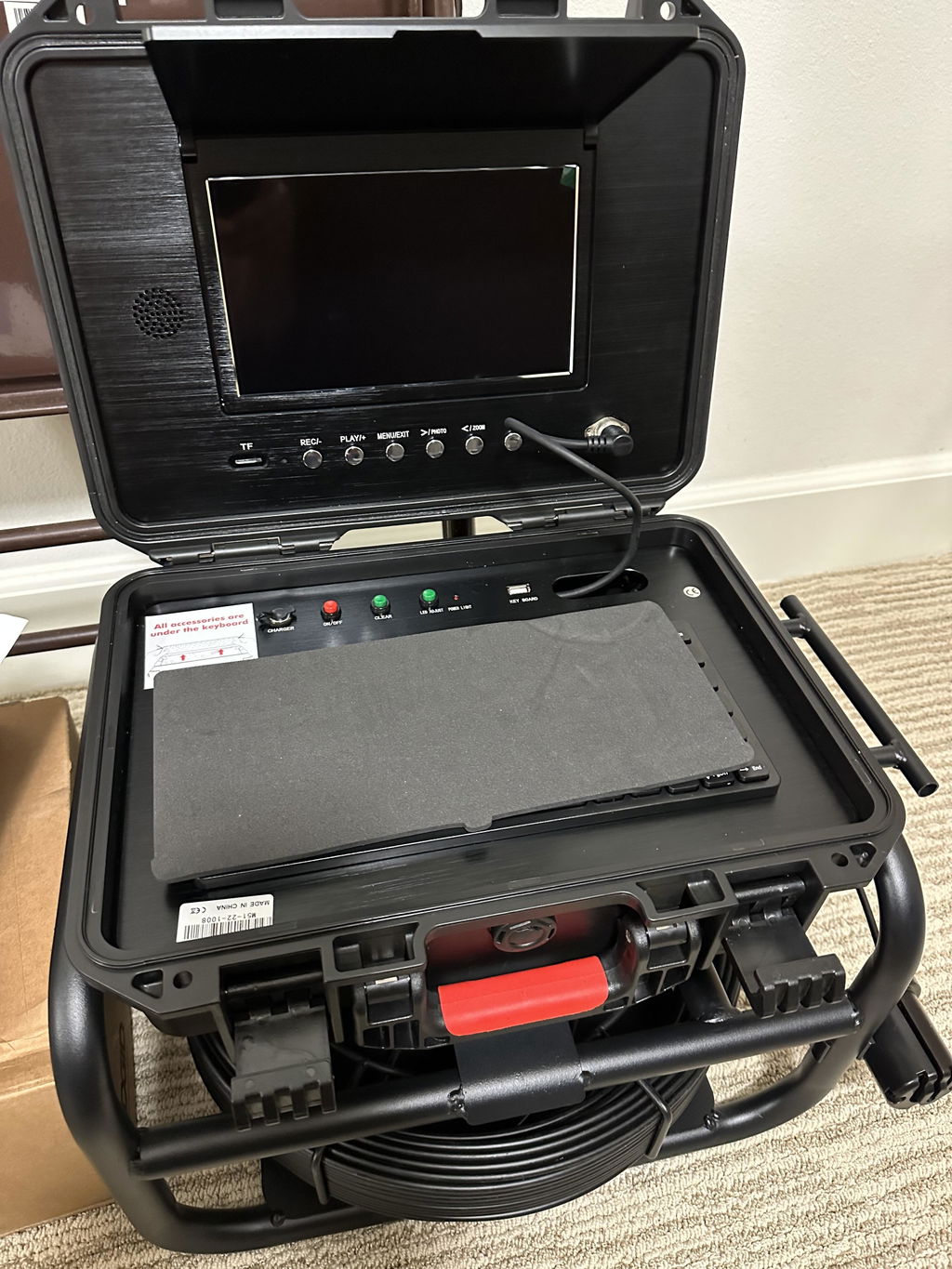

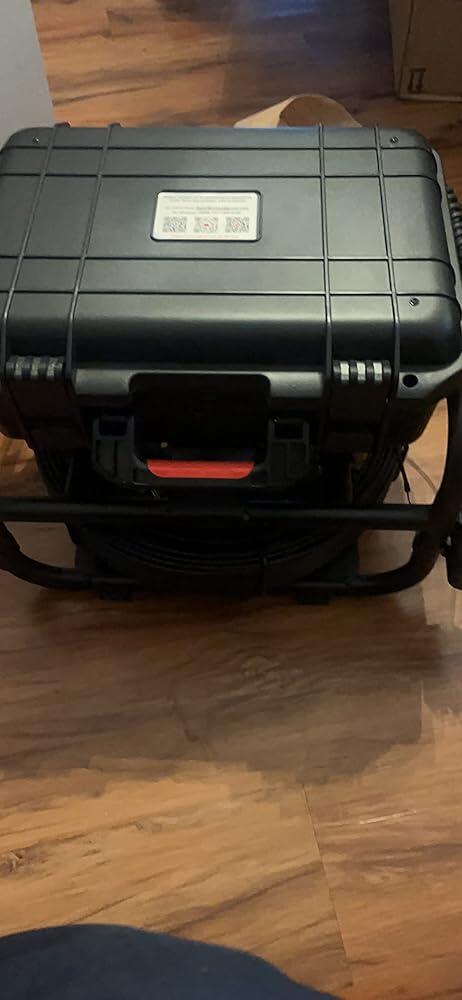

Camera system just arrived. At first glance all looks really nice. I just did not have time to test it, so I can not review functions in real conditions yet. But whole corpus of case is from solid hard plastic, inside has nice aluminum finish. Cable holder is also metal, what is great.
At this moment I just do not understand how keyboard works. Maybe it is only question of reading manual more carefully.
I think price is adequate, maybe just a little bit surprise, since I did not expected inside aluminum finish.
I hope camera and cable could handle also cast iron pipes, since in my country it is pretty common.
E
This is the best camera I bought yet. I had all different Ridgid cameras and this the best of all and 1/15 the cost. If you are looking for a sewer camera I wood recommend Sanyipace.
J
Good product. Worked great
G
Good product. Worked great
C

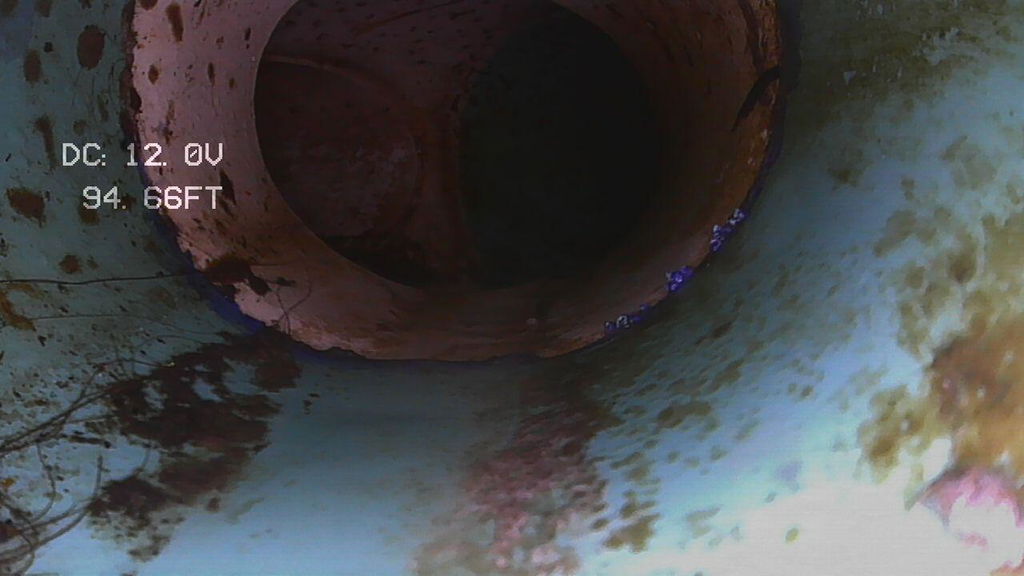

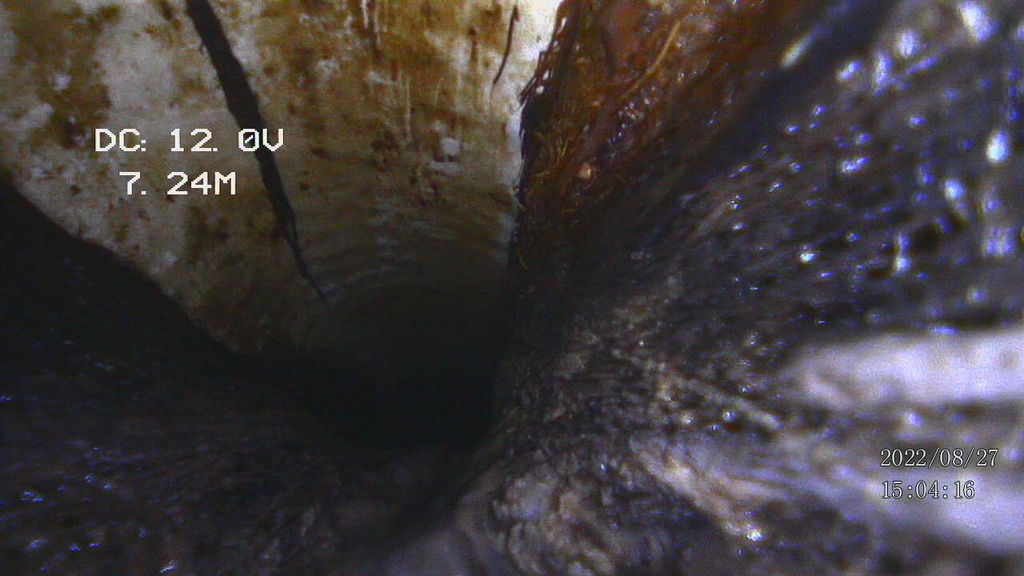

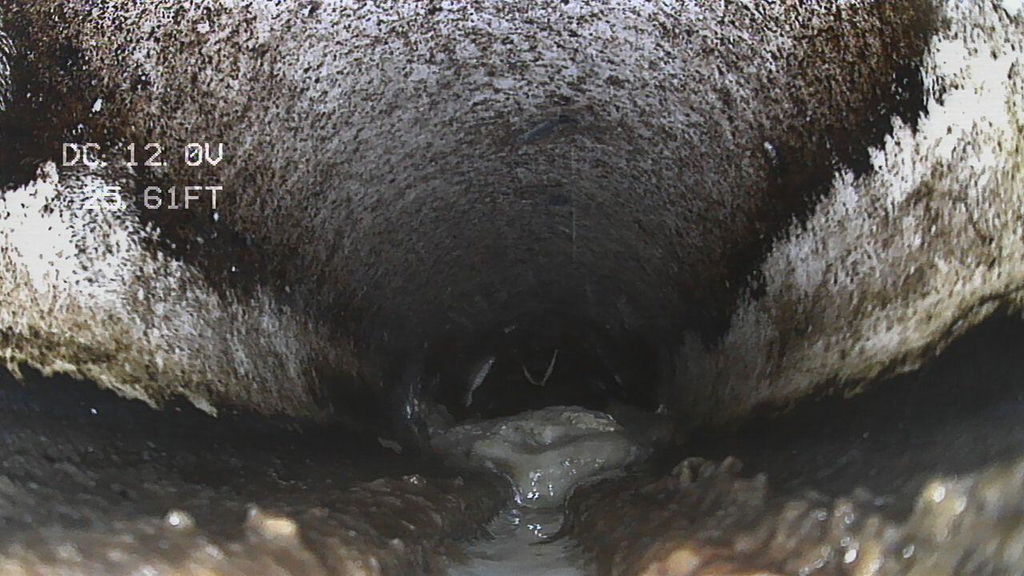

Good quality camera for the price. Just received the camera today and have already found roots in my own drain, see photo.
A
Awesome camera works great, customer service is very responsive for any parts or things you may need from them very reasonable company five out of five starsNote works phenomenal with my locator wand
M
I've only used a few times but the quality of the device and the videos are great.. Very easy to use.
M
I've only used a few times but the quality of the device and the videos are great.. Very easy to use.
J
Came with a broken part. Would love to get a replacement without returning whole item
E
Received my drain camera quick. Already using and loving it.
U
Received my drain camera quick. Already using and loving it.
A
Good quality image. Line bent in couple spots. I bought thia in October 2020 and I haven't use the charger until now and guess what. It wont work. Very disappointed.
L
This camera is great for the price and gives a very clear picture on the screen.
A
it works we are satisfied hope Amazon is happy with this review since it is required by AmazonAnswer as Amazon wants and you might get a sucker
p

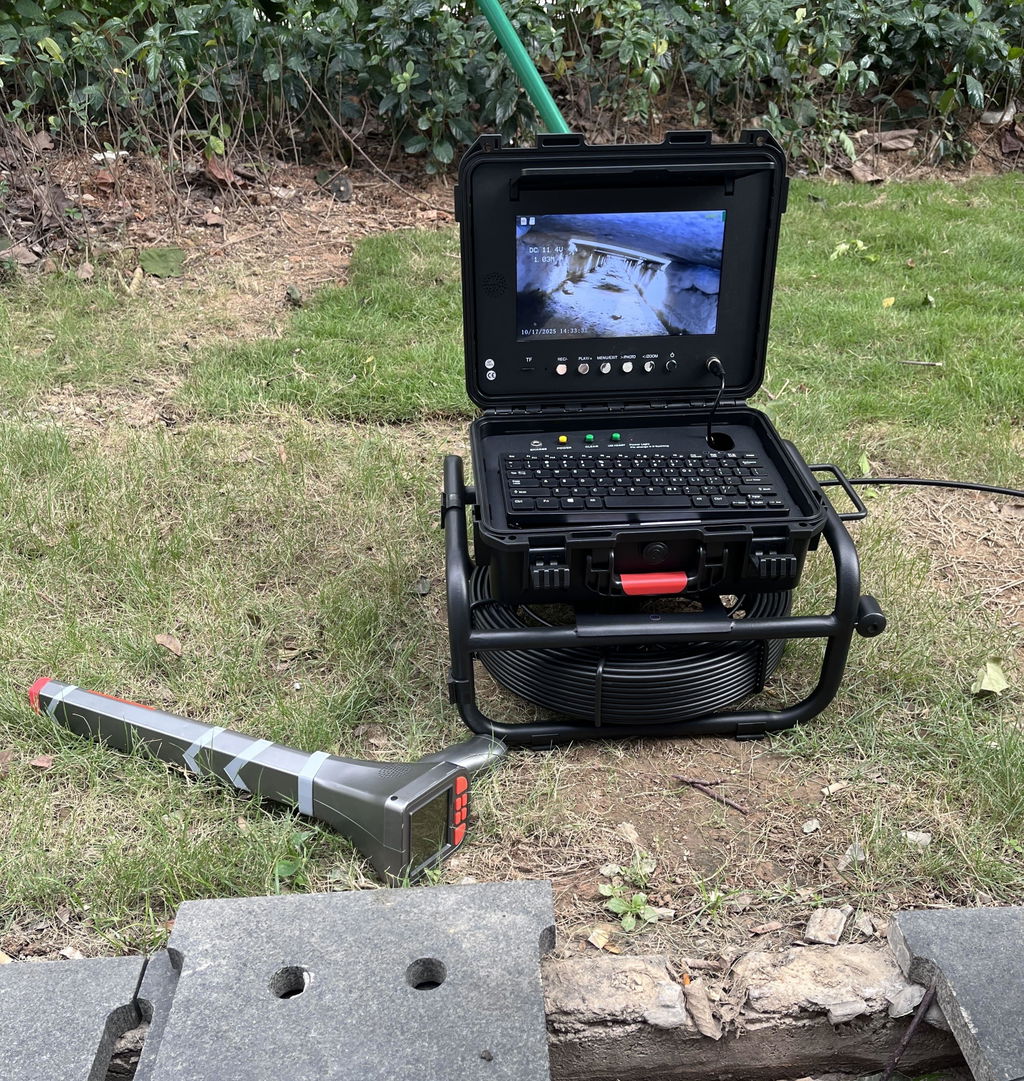

Really pleased with this product. Already used it a couple of times and it's very easy to unbox and start using. The camera and image are crisp and clear. The distance tracker display is super helpful to let you know how far into the pipe you are. Once the handheld locator is dialed in it will get you to where the beacon is. Outstanding camera and locator from Sanyipace at a fair price.
